Fir Tree Cable Ties Product List
<--Swipe the View Table Left and Right-->
| Item NO. |
Sketch Map | Width (mm) |
Length (mm) |
HoleDla Φ | Panel Thickness | Max.Bundle Dia |
|---|---|---|---|---|---|---|

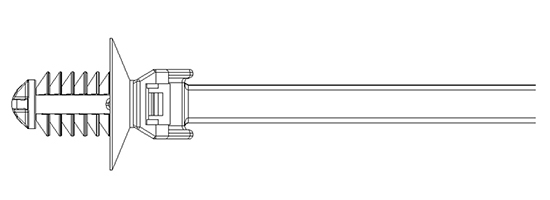

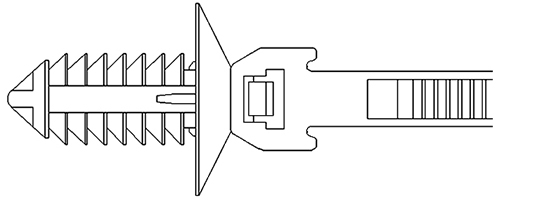

| MOC-4.6×165 |  |
4.6 | 165 | Φ6.3-7.0 | 0.7-7.0 | 35 |

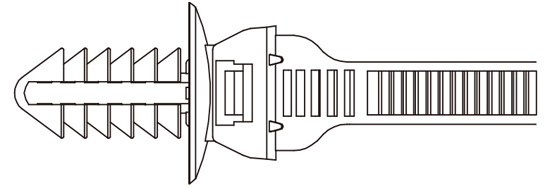

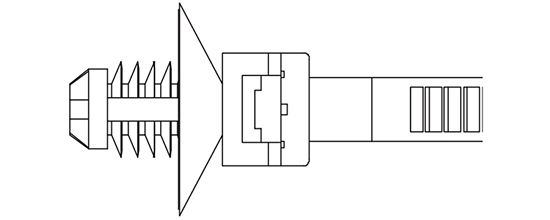

| MOC-2.5×64 |  |
2.5 | 64 | Φ4.9-5.1 | 1.0-5.0 | 7.5 |

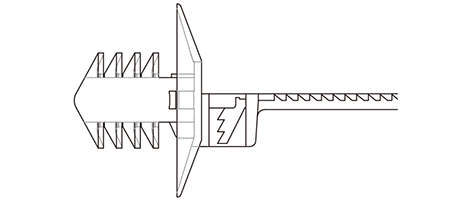

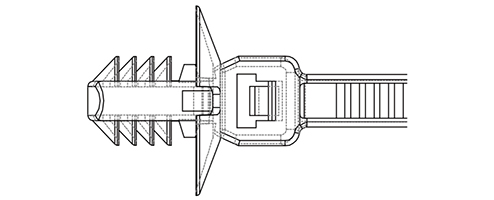

| MOC-2.5×108Φ8 | |
2.5 | 108 | Φ4.9-5.1 | 2.0-4.0 | 20 |

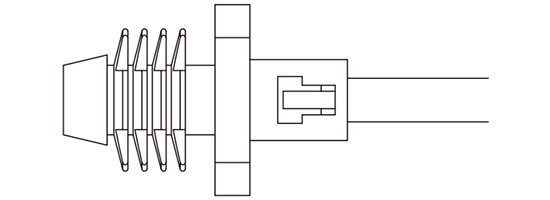

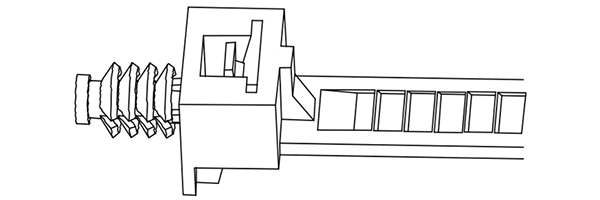

| MOC-2.5×108Φ12.8 | |
2.5 | 108 | Φ4.9-5.1 | 2.0-4.0 | 20 |

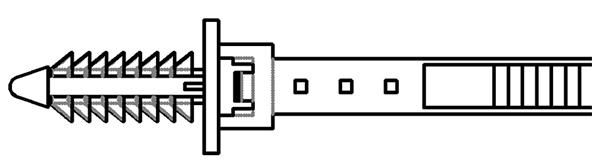

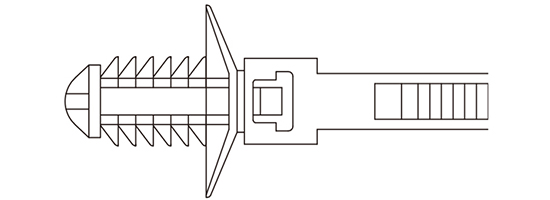

| MOC-2.7×63 |  |
2.7 | 63 | Φ4.9-5.1 | 0.6-4.5 | 12 |

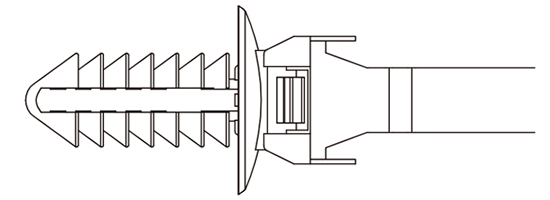

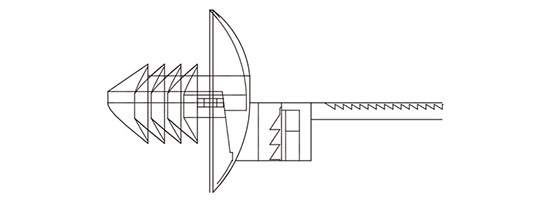

| MOC-3.6×110 |  |
3.6 | 110 | Φ4.9-5.1 | 0.6-4.0 | 15 |

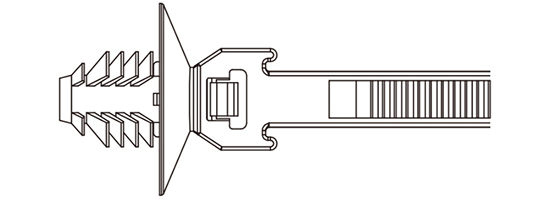

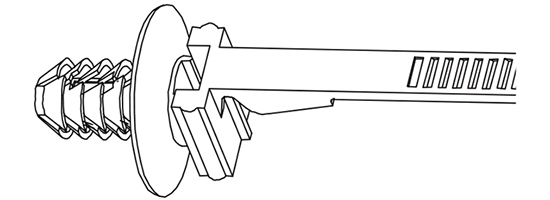

| MOC-6.3×154Φ5.5 |  |
6.3 | 154 | Φ5.5 | 0.6-3.0 | 25 |

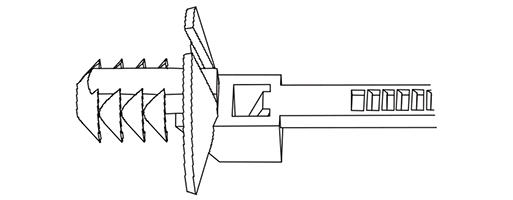

| MOC-8×150Φ5.5 |  |
8 | 150 | Φ5.5 | 0.6-3.0 | 30 |
| MOC-2.5×108Φ6 |  |
2.5 | 108 | Φ6.0 | 1.0-5.0 | 20 |
| MOC-5.8×173 |  |
5.8 | 173 | Φ6.0-6.8 | 2.0-6.0 | 38 |
| MOC-4.6×168 |  |
4.6 | 168 | 6.0*12.0 | 0.6-8.3 | 35 |
| MOC-4.6×163 |  |
4.6 | 163 | Φ6.3-7.0 | 0.7-7.0 | 34 |
| MOC-4.6×218Φ6.5 |  |
4.6 | 218 | Φ6.5 | 1.5-7.0 | 53 |
| MOC-5.3×180 |  |
5.3 | 180 | Φ6.5-7.0 | 1.5-7.0 | 53 |
| MOC-4.7×160 |  |
4.7 | 160 | Φ6.5-7.0 | 0.75-3.0 | 32 |
| MOC-4.7×91 |  |
4.7 | 91 | Φ6.5-7.0 | 0.8-4.5 | 15 |
| MOC-4.8×171 |  |
4.8 | 171 | Φ6.5-7.0 | 0.8-7.0 | 35 |
| MOC-5.5×210 |  |
5.5 | 210 | Φ6.5-7.0 | 0.8-4.5 | 45 |
| MOC-5.1×235 |  |
5.1 | 235 | Φ6.0-6.9 | 0.6-6.0 | 50 |
| MOC-2.5×95Φ7.0 |  |
2.5 | 95 | Φ7.0 | 1.0-4.0 | 15 |
| MOC-4.6×200Φ7.0 |  |
4.6 | 200 | Φ7.0 | 0.6-4.5 | 45 |
| MOC-4.7×165Φ7.0 |  |
4.7 | 165 | Φ7.0 | 0.6-6.0 | 30 |
| MOC-5×160Φ7.0 |  |
5 | 160 | Φ7.0 | 0.6-6.0 | 30 |
| MOC-5.4×144Φ7.0 |  |
5.4 | 144 | Φ7.0 | 0.6-6.0 | 30 |
| MOC-5×152Φ7.0 |  |
5 | 152 | Φ7.0 | 0.6-6.0 | 30 |
